Beddingkaj
Quay 700, 701
New quay for constructing and fitting out fishing vessels and maritime services
Beddingkaj is one of the places in the Port of Thyboron where new fishing vessels are built. They are typically fitted out over a six-month period in front of the Thyborøn Skibs & Motor A/S shipyard, located quayside at Beddingkaj. The quay is also widely used for the repair and conversion of vessels.
There is free Wi-Fi at the quay, and easy access to electricity, water and other supplies. The emergency station is also located at the end of Beddingkaj.
Good working conditions ensure good quality
The conditions under which the work is performed affect both the quality and the efficiency with which the work is carried out. The excellent new quay gives shipyard engineers very good working conditions.
Sulehav Newbuilding
Sulehav was fitted out at Beddingkaj by Thyborøn Skibs & Motor as the main contractor. It is a Norwegian fishing for human consumption vessel, and currently fishes in Norwegian waters. It was a huge construction project where everything was installed, from the engine and drivetrain to fishing equipment, a sorting system, welfare facilities, bedrooms and the bridge, with all electronic equipment, in a huge collaboration between the companies at the Port of Thyboron.
Easy access for cranes
Numerous lifts are performed during the construction and repair of the many different vessels on Beddingskaj. Easy access for cranes is a must.
Technical data – Beddingkaj
Berth number
- Berth 1
- 700
- Berth 2
- 701
Navigation
- Water depth, m
- 6
- Port entrance corridor, m
- 59
- Currents, kn
- 0
Quay facility specifications
Dimensions
- Quay length, m
- 129
- Quay width, m
- 11
- Quay wall in m
- 2,05
Capacity
- Bearing capacity, berth 700 & 701, t per m2
- 1 & 0,5
- Point load, berth 700 & 701, t
- 35 & 28
- Axle load, t
- 40
- Outrigger pressure at 1X1 m plate, berth 700 & 701, t
- 15 & 10
- Outrigger pressure at 1X1 m plate, 1 m from quayside, berth 700 & 701, t
- 35 & 28
- Outrigger pressure at 2X2 m plate, berth 700 & 701, t
- 25 & 18
- Outrigger pressure at 2X2 m plate, 2 m from quayside, berth 700 & 701, t
- 80 & 40
Type
- Surface type quay, asphalt
- ✓
- Capping beam type, concrete
- ✓
- Quay type, Sheet pile wall
- ✓
Service
- Accessibility for maritime service
- ✔
- Accessible for cranes
- ✔
History
- Construction year
- / 2020
Quay equipment
Safety
- Safety ladders, quantity
- 5
- Safety ladders, type SeaSafe with LED lights
- ✓
- Distance between safety ladders, m
- 24
- Safety point, quantity
- 2
Supplies
- Power stations
- ✓
- Power stations on quay
- 2
- Power connection point, 125 amp
- ✓
- Power connection point, 63 amp
- ✓
- Power connection point, 32 amp
- ✓
- Water supplies at quay
- ✓
- Water feed capacity, tons or m3 per hour
- Bunkering at quay
- ✓
- Bunkering from barge
- ✓
- Bunkering capacity l/min
- 1500
- Bunkering capacity per barge, m3
- 70-80
- Water hydrants on quay
- 1
Maritime equipment
- Fender type
- 23-5
- Fenders diametre, m
- 1,5
- Fenders width, m
- 0,6
- Distance between fenders, m
- 0,8
- Bollard, quantity
- 11
- Bollard type, bean
- X-6-A-F
- Bollard swl, capacity, t
- 30
- Distance between bollard, m
- 12
Environment
- Waste disposal
- ✓
- Slopoil disposal
- ✓
- Wi-Fi, fiber connection
- ✓
Service
- Accessibility for maritime service
- ✓
- Accessible for cranes
- ✓

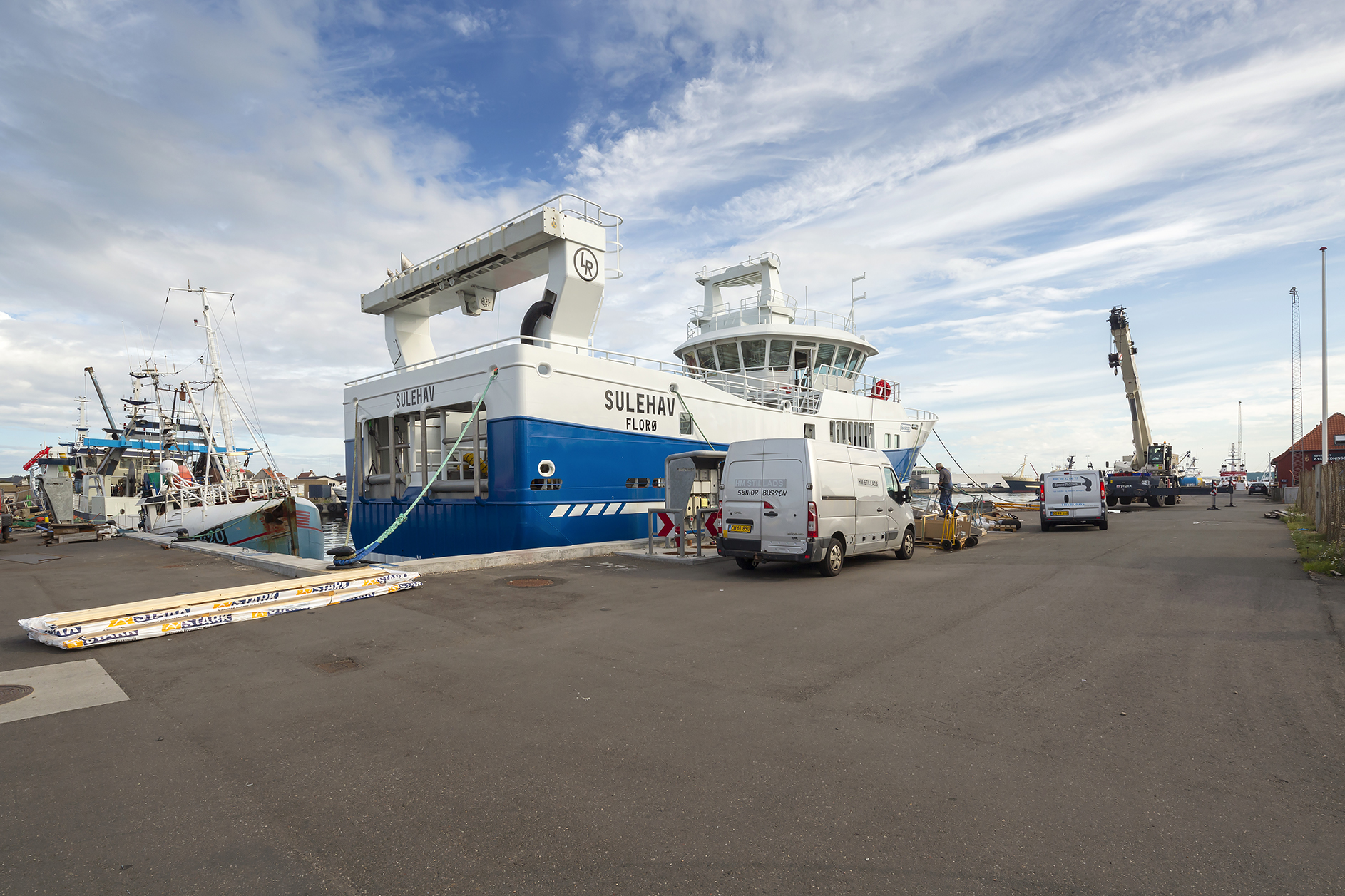

When Sulehav came into being on Beddingkaj
Thyborøn Skibs & Motor’s Terex crane at work
Emergency services operate from Beddingkaj
