Langholmkaj
Quay 1017, 1018, 1019, 1020
Cargo terminal with quayside warehouses and freezing storage

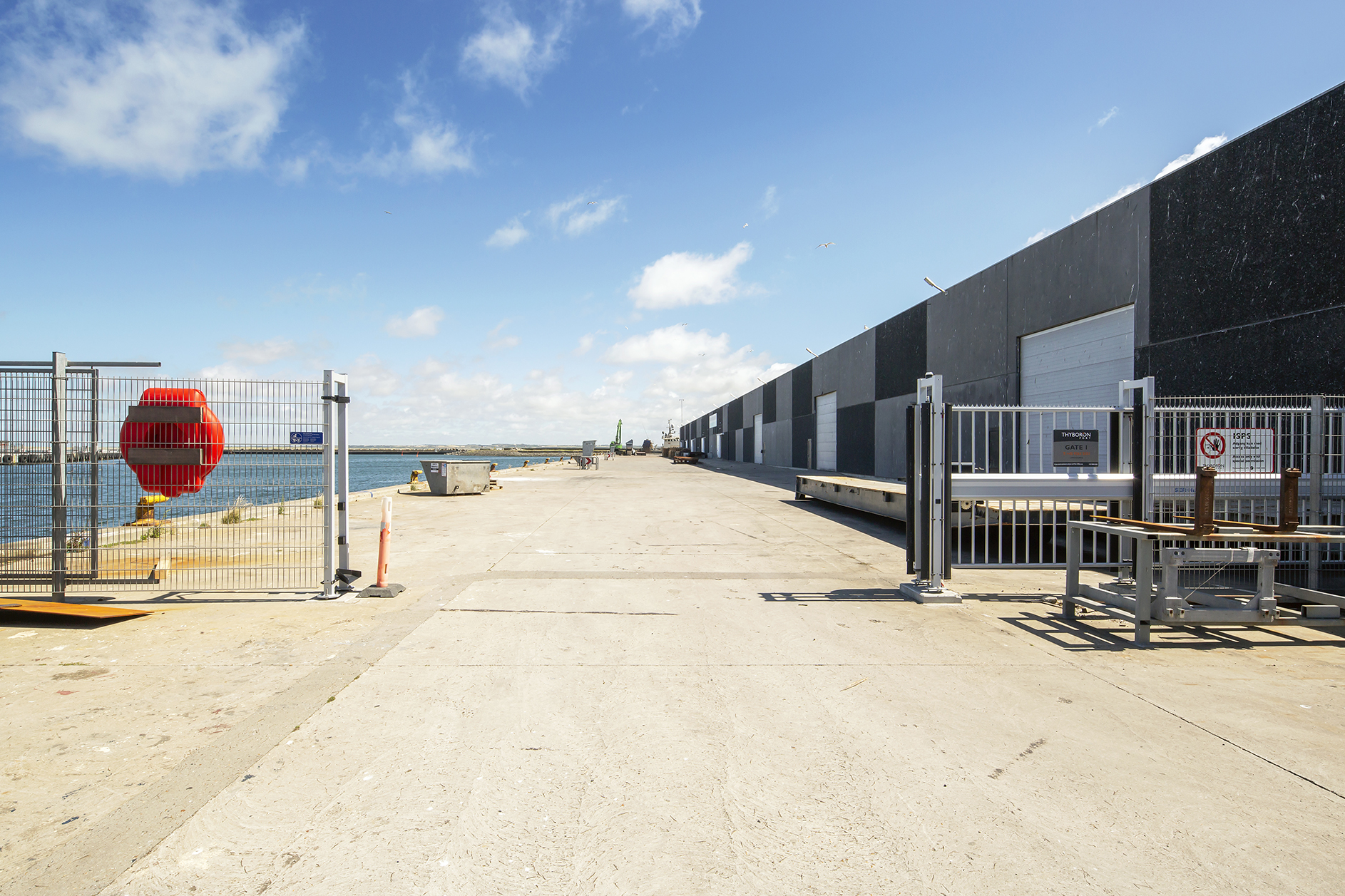

ISPS-compliant quays
Langholmkaj is ISPS compliant. The gates close when a cargo vessel is berthed.
Find out more about ISPS at the Port of Thyboron:
ISPS

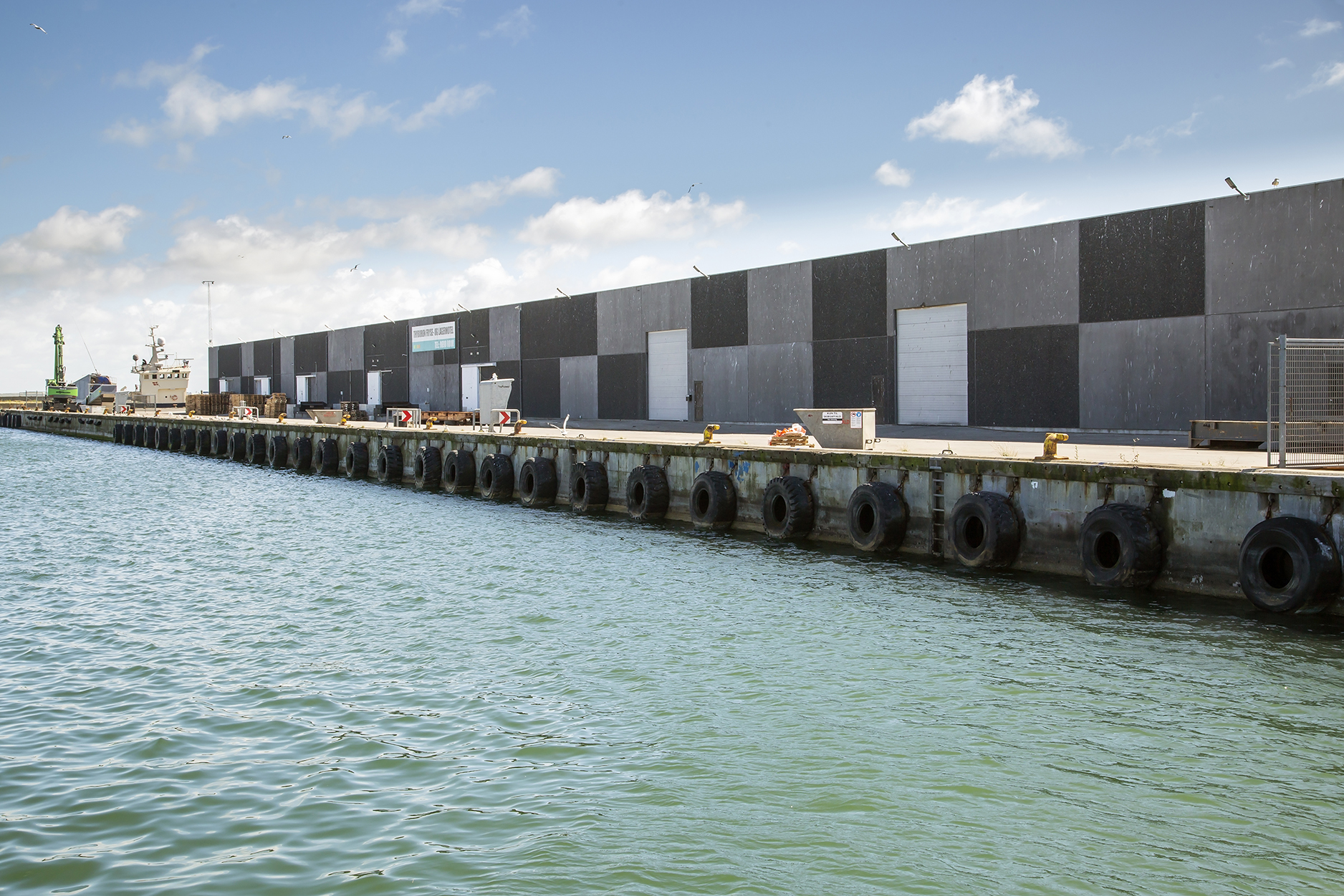

Storage in warehouses
Quayside warehouses make a difference when cargo has to be gathered at the port before shipping, or when it has to be stored after unloading before further transport to customers. Thyborøn Stevedore has various types of storage facilities at Langholmkaj.
Read more about Thyborøn Stevedore:
Thyborøn Stevedore A/S
Storage outdoors
Some types of cargo are suitable for outdoor storage. In these cases, it also makes a difference if the storage area is quayside.
Thyborøn Stevedore has space for outdoor storage at Langholmkaj.
Read more about Thyborøn Stevedore A/S:
Thyborøn Stevedore A/S
Simple access for cranes and trucks
It is possible to drive around the quay, such that major detours can be avoided.
Easy access to supplies
We make every effort to make it as simple as possible to call at the Port of Thyboron. This includes easy access to supplies. Special power stands and water outlets have therefore been installed on the quay, so that the crew can get what they need while the vessel is berthed for loading and unloading.
Quay approved for cruise ships
Langholmkaj is one of two quaysides approved for cruise vessels at Thyboron Port.
Technical Data - Langholmkaj
Berth number
- Berth 1
- 1017
- Berth 2
- 2018
- Berth 3
- 2019
- Berth 4
- 1020
Navigation
- Water depth, m
- 9
- Port entrance corridor, m
- 75,8
- Currents, kn
- 0
Quay facility specifications
Dimensions
- Quay length, m
- 220
- Quay wall in m
- 2,1
- ISPS gate, width, m
- 5
Capacity
- Distributet pressure, t per m2
- 2
- Outrigger pressure at 2X2 m plate, t
- 40
- Outrigger pressure at 2X2 m plate, 2 m from quayside, t
- 80
- Outrigger pressure at 4X2 m plate, t
- 80
- Axle load, t
- 12
- Bollarc traction point, t
- 45
Type
- Quay type, Sheet pile wall
- ✓
- Capping beam type, concrete
- ✓
- Capping beam width, m
- 1,5
- ISPS
- ✓
- Surface type quay, concrete
- ✓
Service
- Accessibility for maritime service
- ✓
- Accessible for cranes
- ✓
History
- Construction year
- 1989 & 2006
Quay equipment
Supplies
- Power stations
- ✓
- Power stations on quay
- 2
- Power connection point, Power station 1, 125 amp
- 2
- Power connection point, Power station 2, 63 amp
- 4
- Power connection point, 32 amp
- ✓
- Water supplies at quay
- ✓
- Water feed capacity, tons or m3 per hour
- Wi-Fi, fiber connection
- ✓
- Bunkering at quay
- ✓
- Bunkering from barge
- ✓
- Bunkering capacity l/min
- 1500
- Bunkering capacity per barge, m3
- 70-80
- Slopoil disposal
- ✓
- Waste disposal
- ✓
Maritime equipment
- Fenders diametre, m
- 1,5
- Fenders width, m
- 0,6
- Distance between fenders, m
- 2
- Bollard, quantity
- 17
- Bollard type, bean
- ✓
- Bollard swl, capacity, t
- 20
- Bollard swl, capacity, Berth 1017, t
- 30
- Distance between bollard, m
- 14
Safety
- Safety ladders, quantity
- 11
- Safety ladders, type Galvinized Steel
- ✓
- Distance between safety ladders, m
- 22,5
- Safety point, quantity
- 2
Environment
- LED lightning, numbers
- 12
- Waste disposal
- ✓
- Slopoil disposal
- ✓
Hinterland at the quayside
Type
- Surface type onshore area, asfalt
- ✔

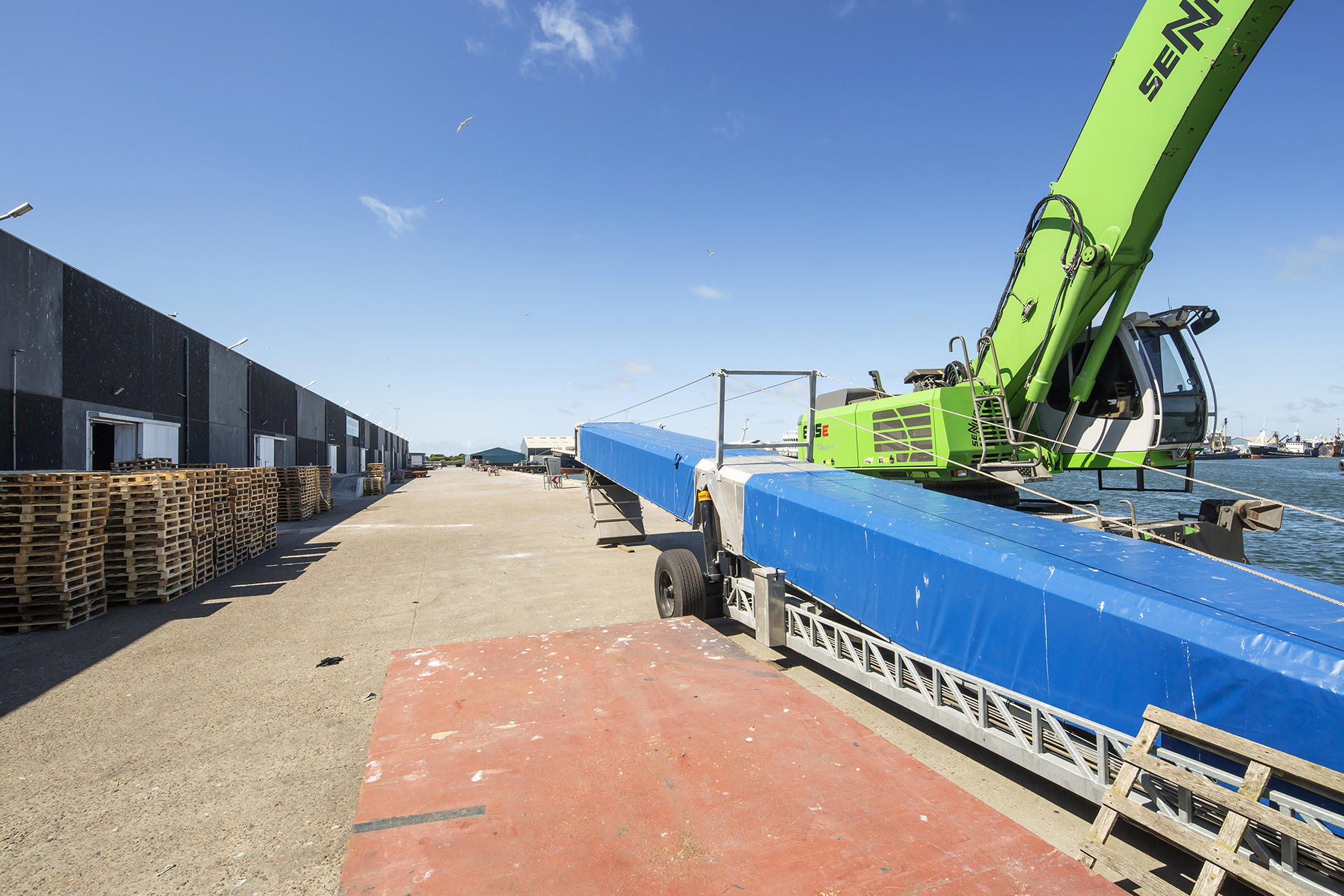

Loading using mobile Sennebogen cranes
Loading from truck to cargo vessel
Loading using the vessel’s gears
