Svanholmkaj
Quay 1014, 1015, 1016
Svanholmkaj is ideal for repairing fishing gear
Svanholmkaj is a very suitable quay for maritime services. Fishing vessels can repair their trawls, replace their Danish seine lines when they become worn and have other adjustments and maritime services done. There is easy access to the quay for service vehicles, and the nearby trawl-stretching facility is ideal for trawl repair right near the vessel.
There is simple access to electricity and water at the quay, and easy access to containers for disposing of ship waste and slop oil in an eco-friendly way.

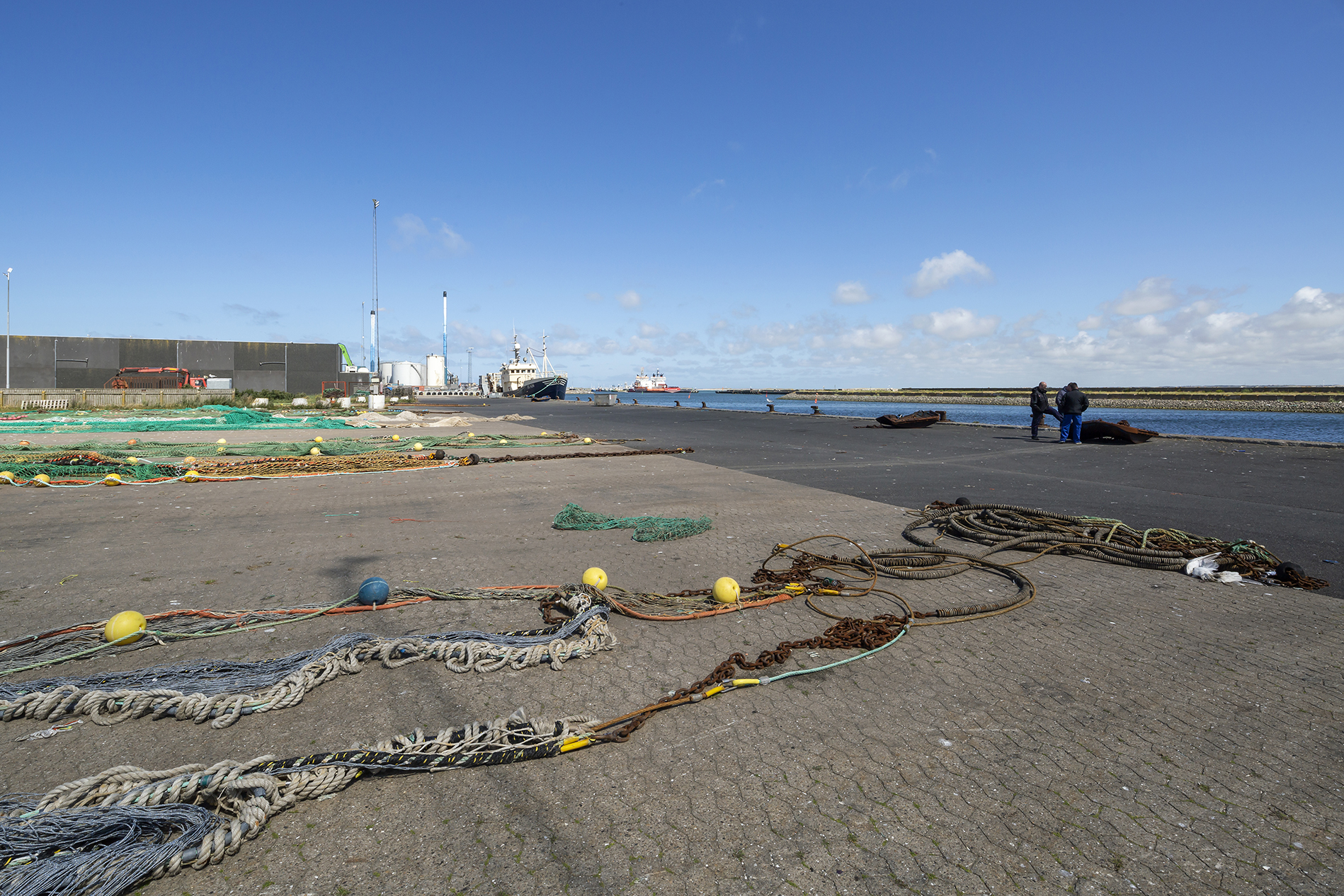

Quayside trawl stretching
The 8 metres of water depth ensures that the vast majority of fishing vessels can berth at the quay, and have fishing gear such as seines, trawls and trawl buckets inspected on the quayside.
Trawlstræk Svanholmkaj
Access to power and water supplies
There is easy access to supplies such as power and water at Svanholmkaj.
El forsyning fiskeri

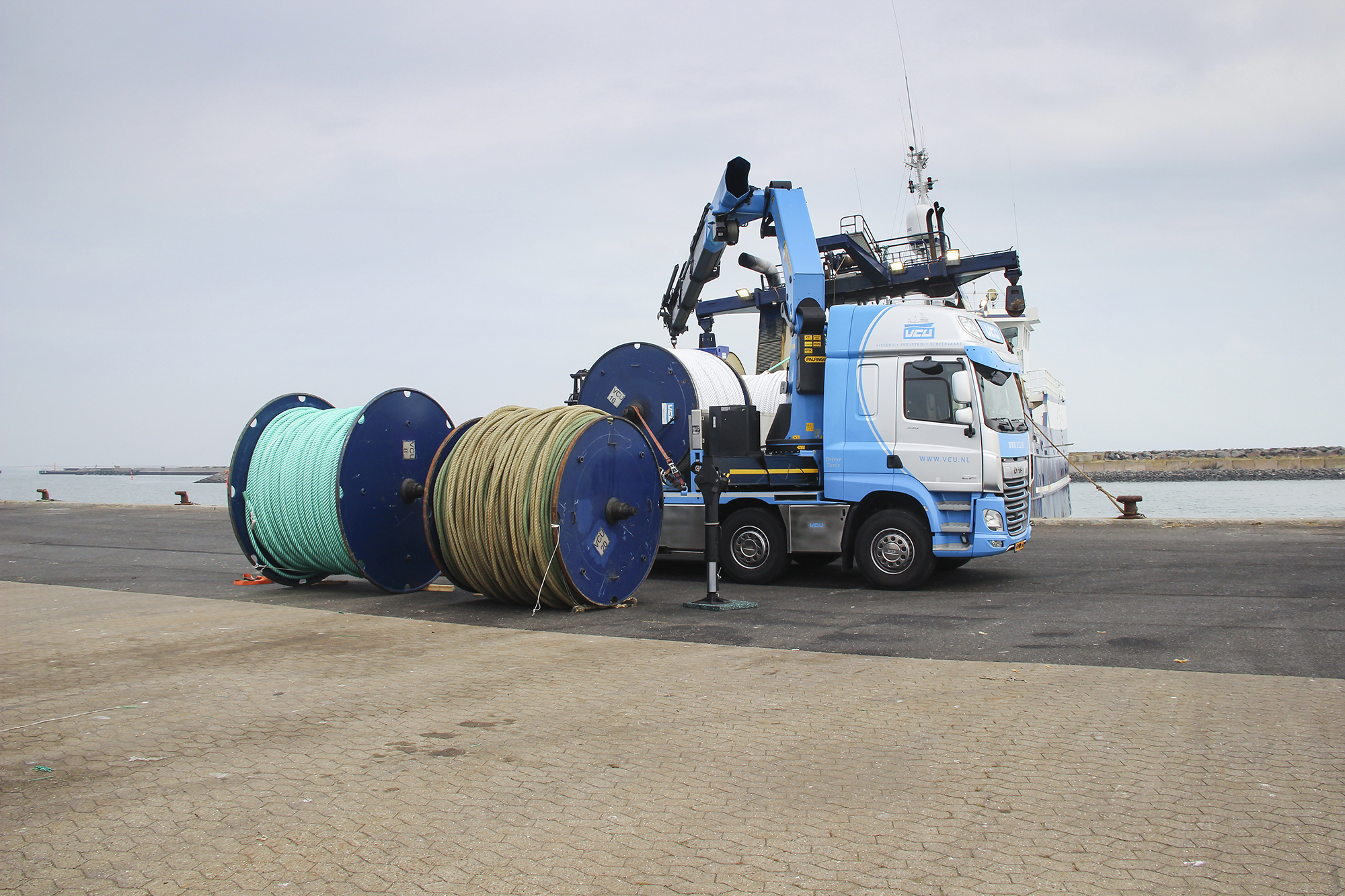

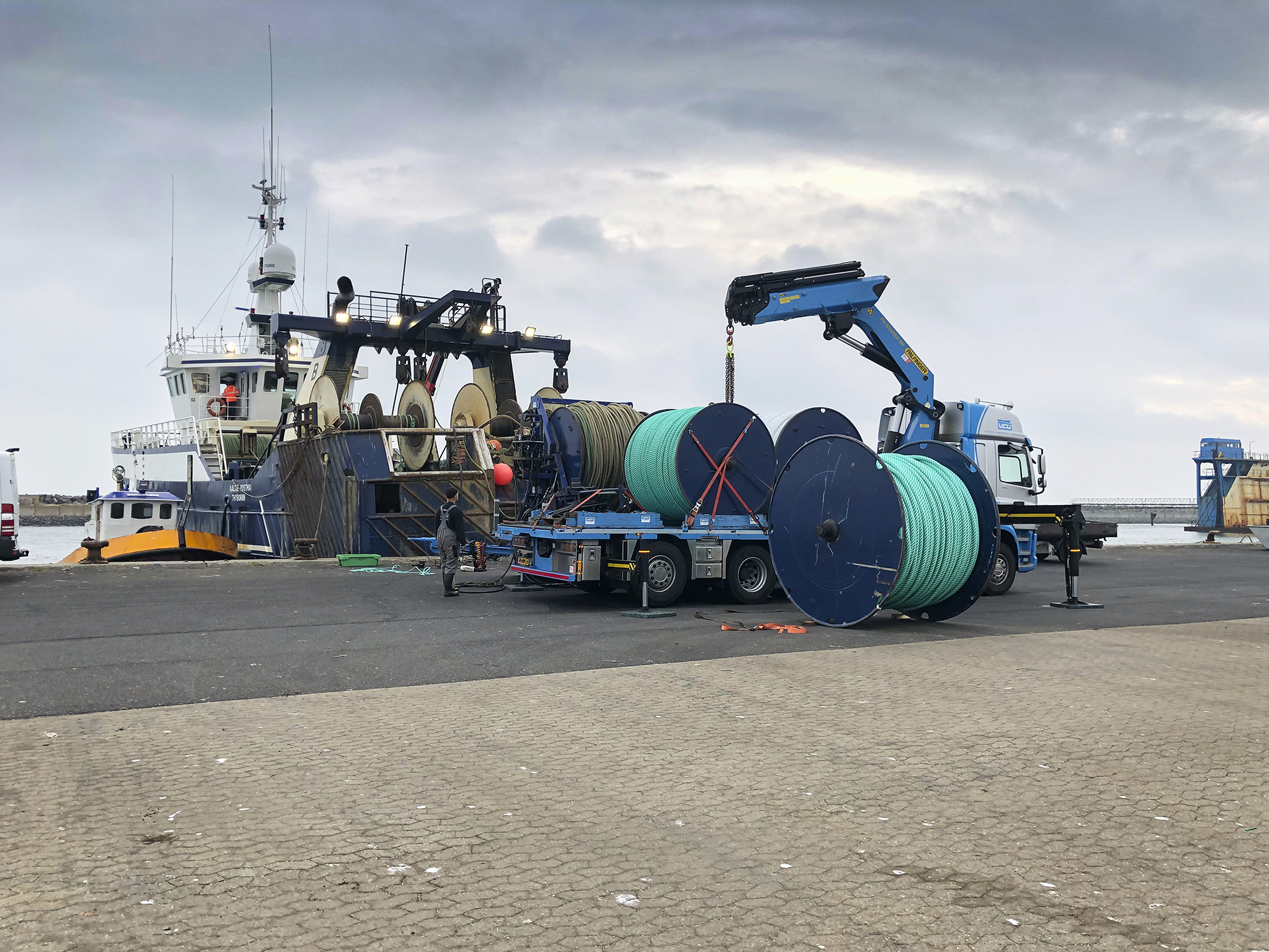

Replacing Danish seine line
There is easy access for trucks, making it simple to replace Danish seine line, for example, and roll the old line onto reels.
Recycling Danish seine line
Bollard traction point at Svanholmkaj
Smaller fishing vessels are able to test their engine torque using the 30-tonne bollard traction point on the corner of Svanholmkaj and Langholmkaj.
Technical Data - Svanholmkaj
Berth number
- Berth 1
- 1014
- Berth 2
- 1015
- Berth 3
- 1016
Navigation
- Water depth, m
- 8
- Port entrance corridor, m
- 75,8
- Currents, kn
- 0
Quay facility specifications
Dimensions
- Quay length, m
- Quay width, m
- Quay wall in m
- 2,10
Capacity
- Bearing capacity, t per m2
- 1
- Distributet pressure, t per m2
- 1
- Outrigger pressure at 1X1 m plate, t
- 40
- Outrigger pressure at 2X2 m plate, 2 m from quayside, t
- 80
- Outrigger pressure at 4X2 m plate, t
- 80
Type
- Quay type, Sheet pile wall
- ✓
- Surface type quay, asphalt
- ✓
- Capping beam type, concrete
- ✓
Service
- Accessible for cranes
- ✓
- Accessibility for maritime service
- ✓
History
- Construction year
- 1989
Quay equipment
Supplies
- Power stations
- ✓
- Power stations on quay
- 4
- Power connection point, 63 amp
- ✓
- Power connection point, 32 amp
- ✓
- Water supplies at quay
- ✓
- Wi-Fi, fiber connection
- ✓
- Bunkering at quay
- ✓
- Bunkering from barge
- ✓
- Bunkering capacity l/min
- 70-80
Safety
- Safety ladders, quantity
- 4
- Distance between safety ladders, m
- 11
- Safety point, quantity
- 2
Maritime equipment
- Fender type
- 23-5
- Fenders diametre, m
- 1,5
- Fenders width, m
- 0,6
- Distance between fenders, m
- 7
- Bollard, quantity
- Bollard type, bean
- Bollard swl, capacity, t
- 20
- Distance between bollard, m
- 4,2; 8,4; 12,6
- Bollard for pull test, numbers
- 1
- Bollard for pull test, t
- 30
Environment
- Slopoil disposal
- ✓
- Waste disposal
- ✓
- LED lightning, numbers

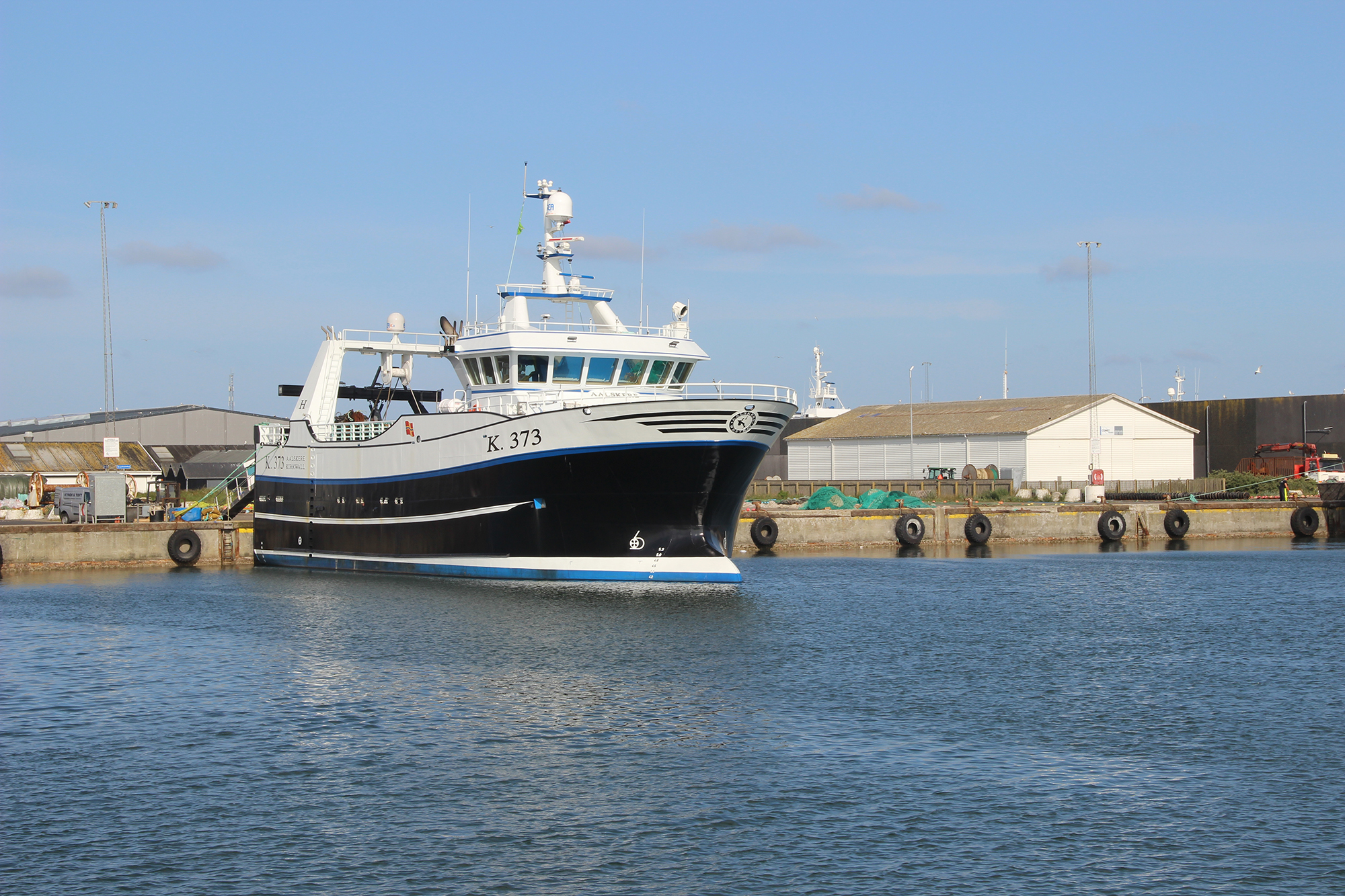

Final adjustments to the Aalskere newbuilding
