Tankskibskaj 15A4516 Web

Tankskibskaj

Quay 809, 810, 600

Multifunctional quay for offshore, transit fishing and small cruise vessels

Tanskibskaj is centrally located in the port and ideal for a range of activities. Smaller jack-up vessels are permitted to jack up here, and offshore supply vessels like to use the quay for mobilisation due to the easy access for cranes and maritime services. Transit fishing vessels have had a tradition of using the quay due to its very easy access for trucks.

There is easy access to electricity, water and other supplies on the quay, and vessels can dispose of ship waste and slop oil in an eco-friendly manner. Finally, Tankskibskaj is one of the quays at the Port of Thyboron at which a sewerage connection is available.

Central quay

Tankskibskaj is very centrally located, close to the port office and just inside the entrance to the port. It is only a short distance from the town centre, making this quay attractive to crews.

Tankskibskaj Ovenfra 0154 Web

Mobilising offshore supply vessels

Tankskibskaj is ideal for mobilising various offshore vessels. The quay is ISPS-compliant, allowing project teams to work without disruption. There is also easy access for cranes and service companies.

Mobilisering Sima 7188 1 Web

Jack up location for smaller vessels

Tankskibskaj is one of the two sites at the Port of Thyboron approved for jack-up manoeuvres. Smaller jack-up vessels are permitted to jack up at Tankskibskaj.

Geotechnical seabed documentation for the quay, such as CPT data, can be provided.

Jack Up Tankskibskaj 28. April 2014 042 Web

Transit fishing with easy access for trucks

Transit fishing has a long history on Tankskibskaj. The quay’s easy access for trucks makes it ideal for landing fish and handling new fishing boxes.

Transit Fisheries 2238 Web

Quay approved for cruise ships

Nordstjernen became the first cruise ship ever to call at port in Thyboron in spring 2019. It became quite a draw card, and the event was greatly enjoyed by the many German guests aboard the historic vessel, as well as the many locals who came to the quayside to welcome it.

Krydstogt 4955 Web

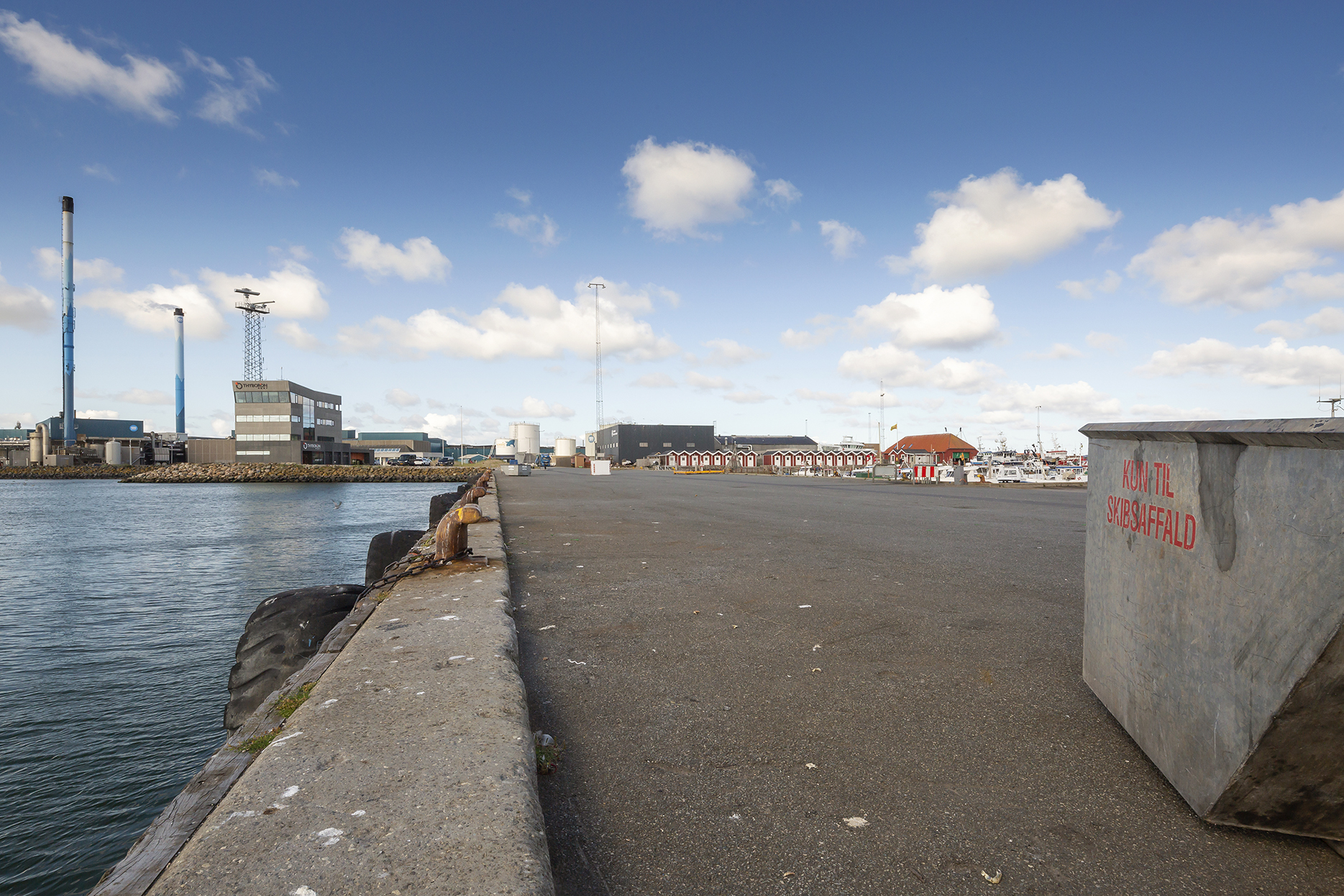

Tankskibskaj 15A4501 Web

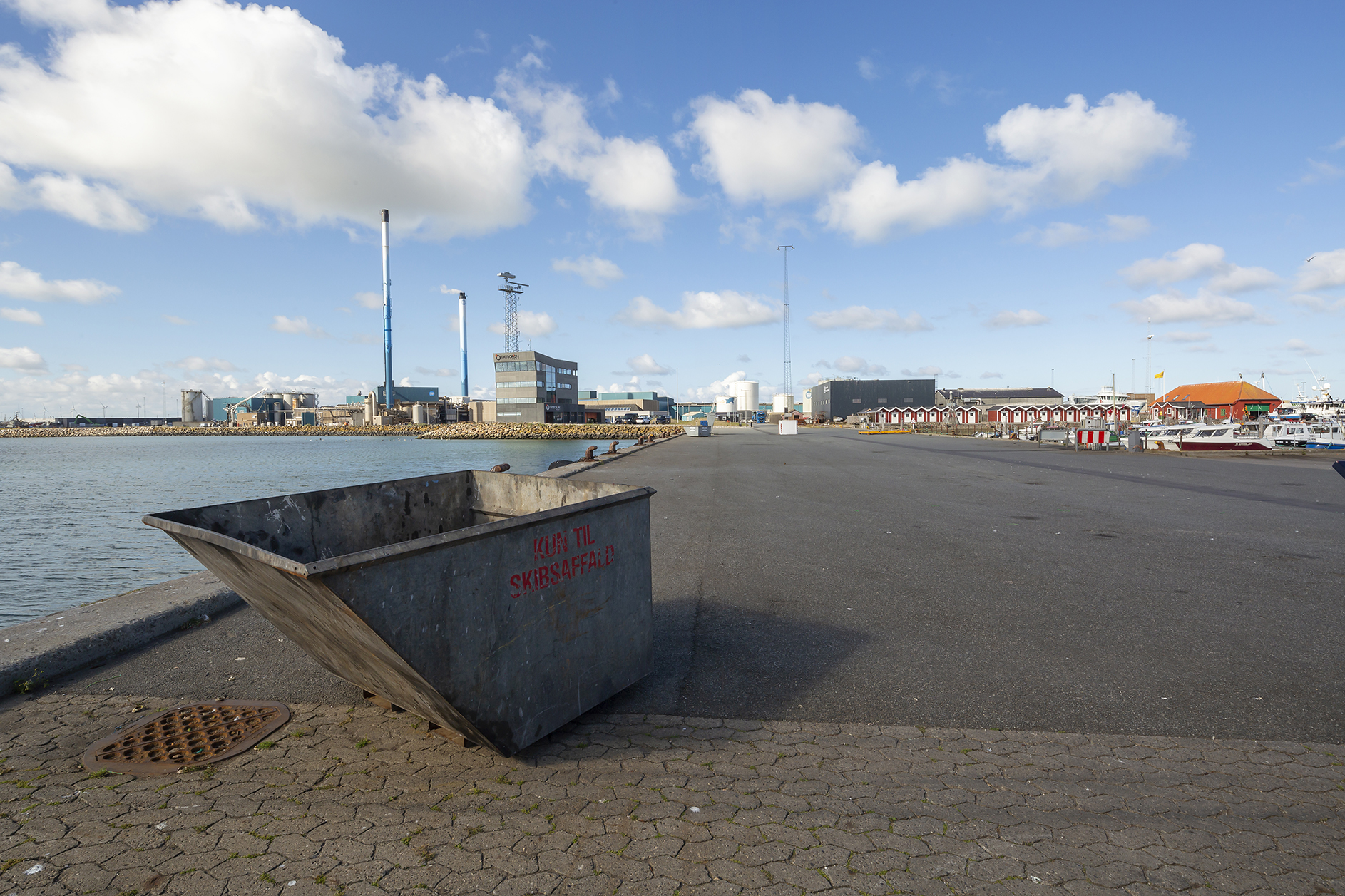

Tankskibskaj 15A4488 Web

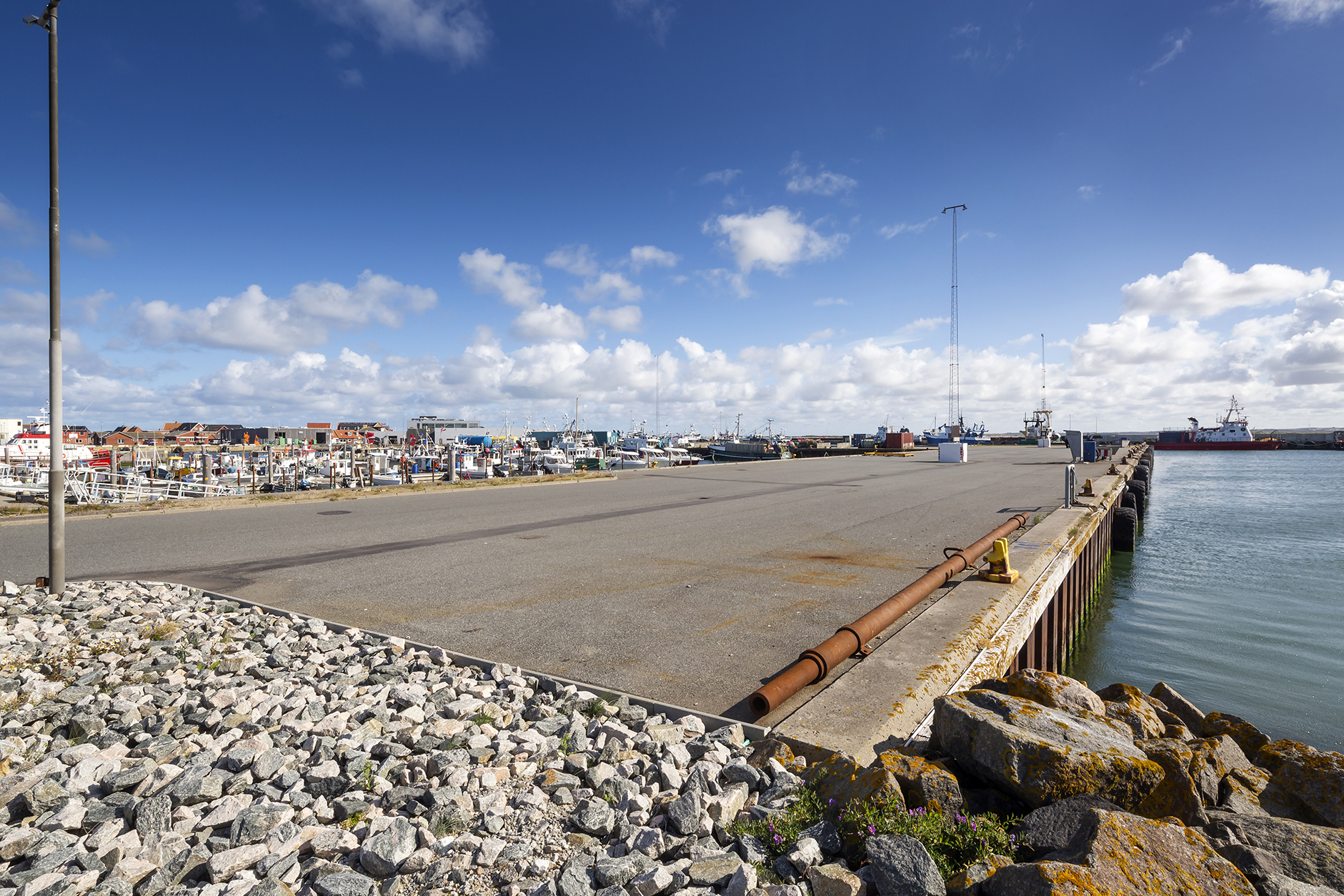

Tankskibskaj 15A4481 Web

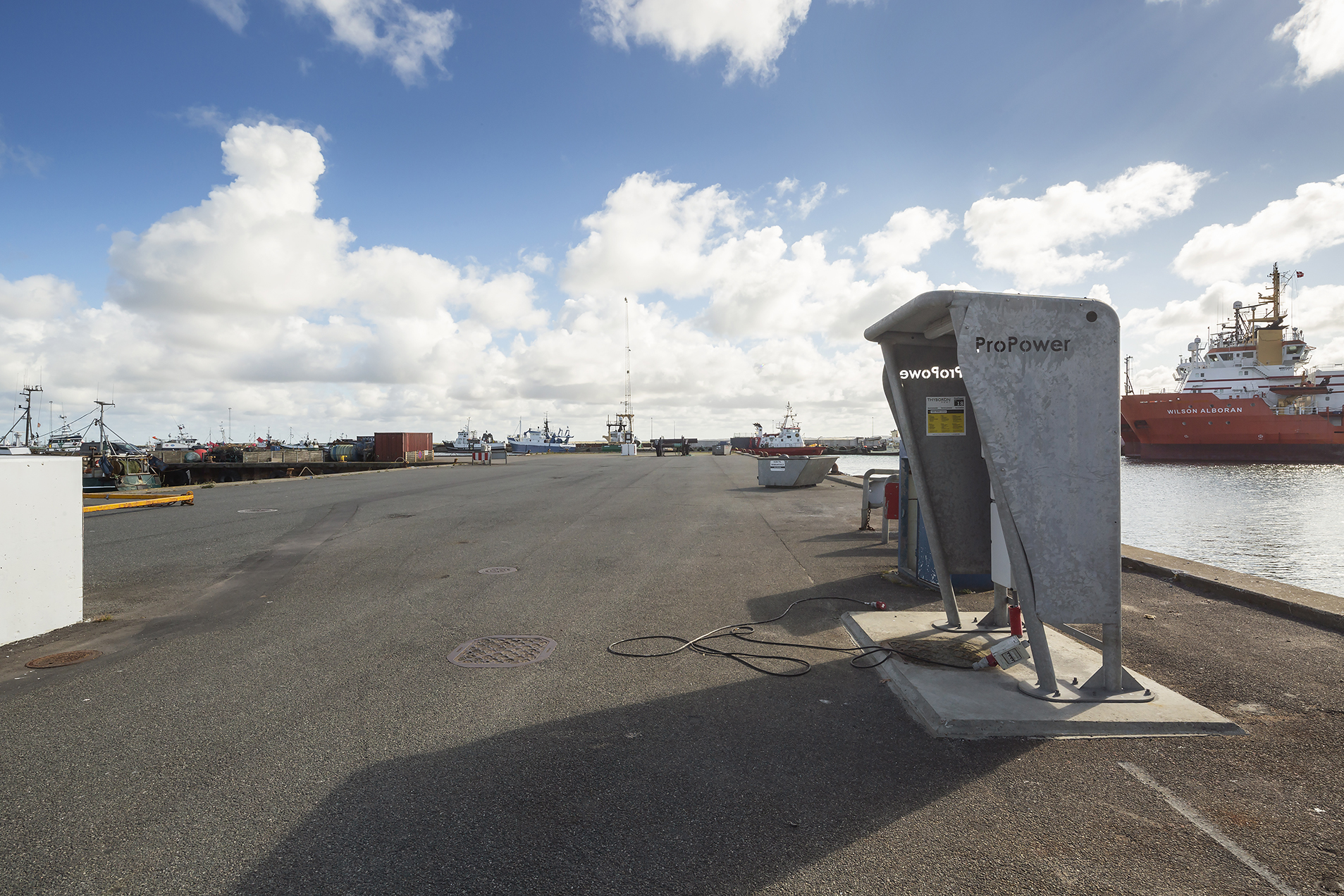

Tankskibskaj 15A4508 Web
Tankskibskaj Ovenfra 0154 Web

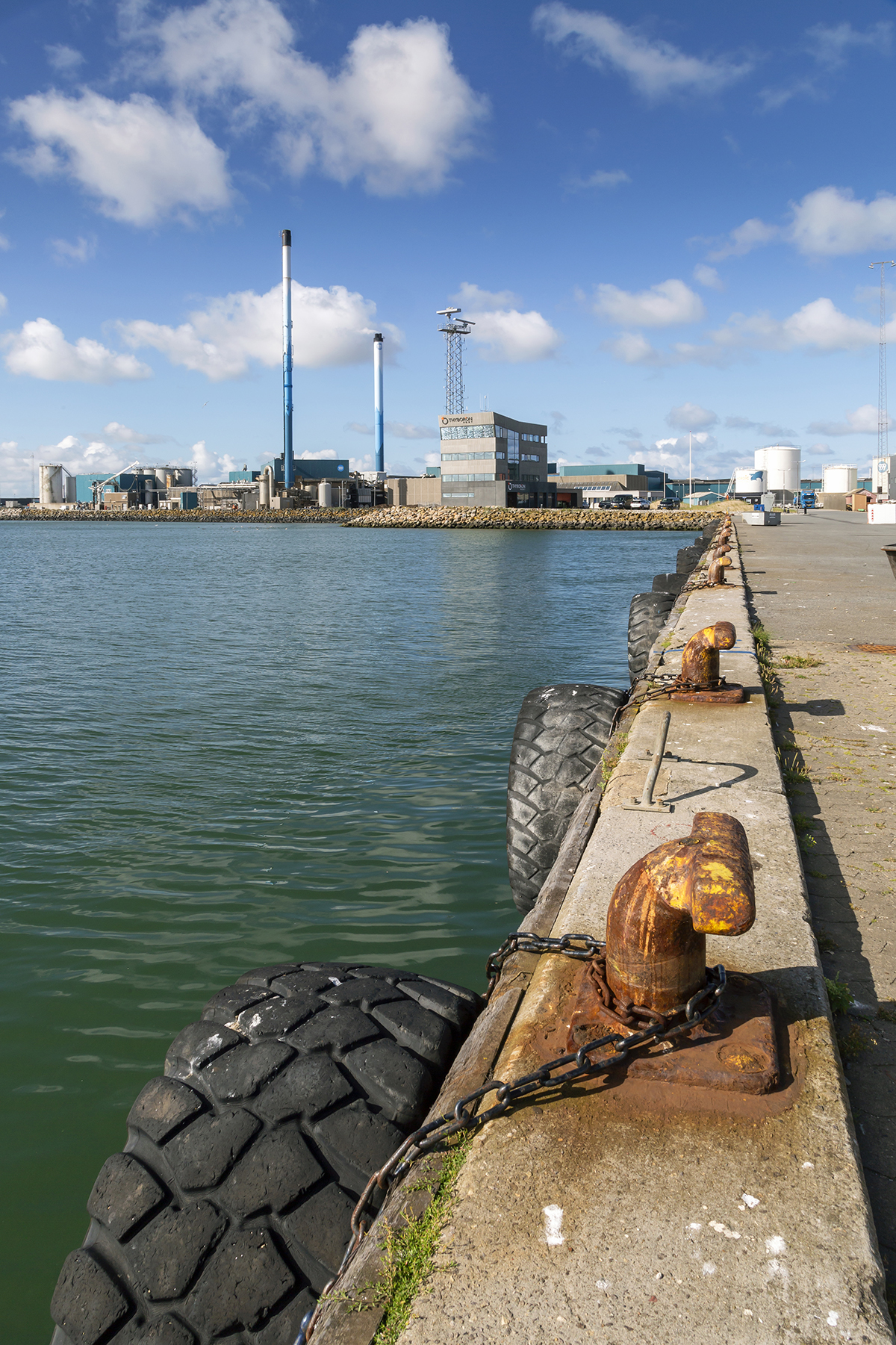

Tankskibskaj 15A4497 Web

Technical Data - Tankskibskaj

Berth number

Berth 1
809
Berth 2
810
Berth 3
600

Navigation

Water depth, m
6 & 7,5
Port entrance corridor, m
75,8

Quay facility specifications

Dimensions

Quay length, m
130
Quay width, m
Quay wall in m

Capacity

Bearing capacity, t per m2
1
Distributet pressure, t per m2
1
Outrigger pressure at 2X2 m plate, 2 m from quayside, t
80
Axle load, t
10

Type

ISPS
Surface type quay, asphalt
Capping beam type, concrete
Quay type, Sheet pile wall

Service

Accessibility for maritime service
Accessible for cranes

Quay equipment

Safety

Safety point, quantity
1

Supplies

Power stations
Power stations on quay
1
Power connection point, 63 amp
Power connection point, 32 amp
Water supplies at quay
Water hydrants on quay
1
Bunkering at quay
Bunkering from barge
Bunkering capacity l/min
1500
Bunkering capacity per barge, m3
70-80

Maritime equipment

Fenders diametre, m
1,8
Fenders width, m
0,75
Distance between fenders, m
2 - 7,5
Bollard, quantity
17
Bollard swl, capacity, t
30

Environment

Waste disposal
Slopoil disposal
Sewage
Wi-Fi, fiber connection

Service

Accessibility for maritime service
Accessible for cranes

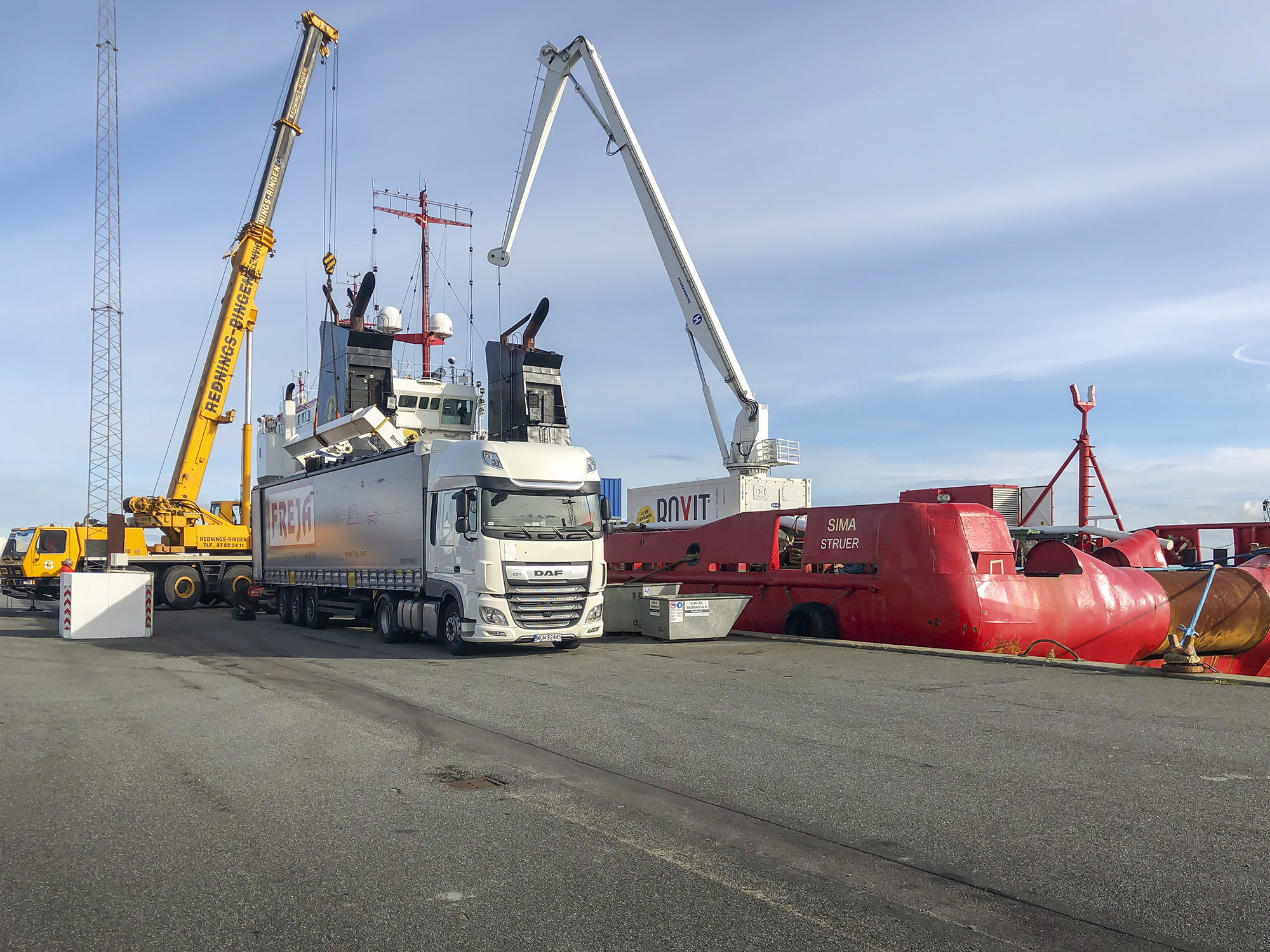

Mobilisering Sima 2929 Web

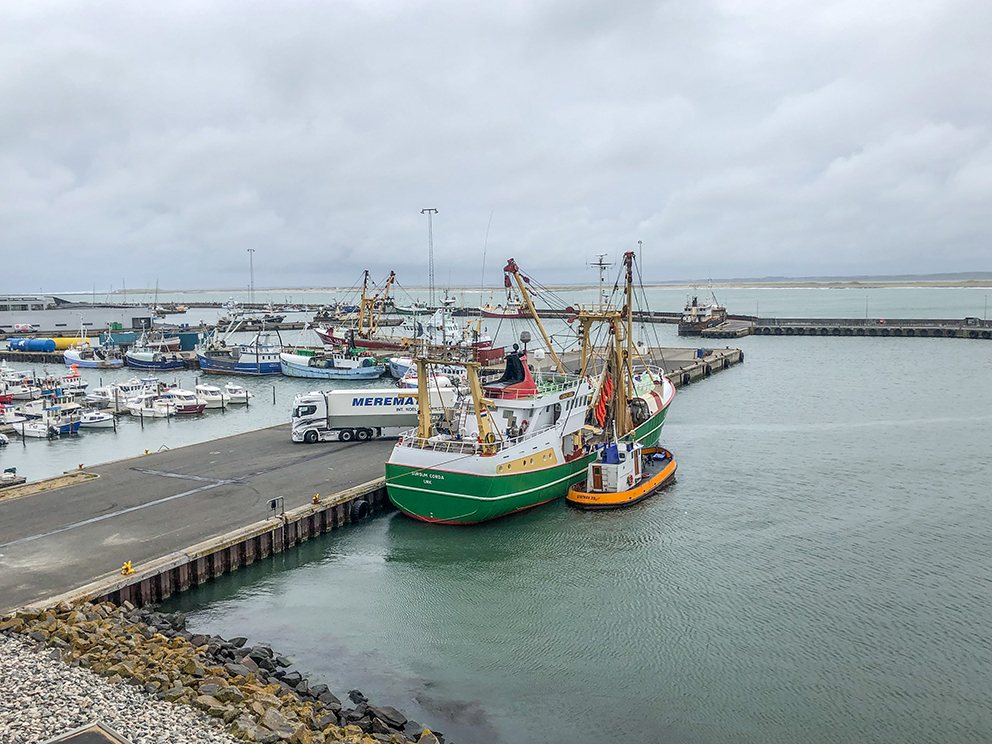

Transit Fisheries IMG 1266 Web
