Tværkaj
Quay 702
Many new vessels are built at Tværkaj
Many newbuilds are fitted out at Tværkaj at the Port of Thyboron. The Kynde & Toft A/S shipyard is located right beside the quay, so that technicians can work efficiently when building new vessels or repairing existing vessels at the quay.
There is easy access for cranes and to water, electricity and other supplies at the quay, and free Wi-Fi.

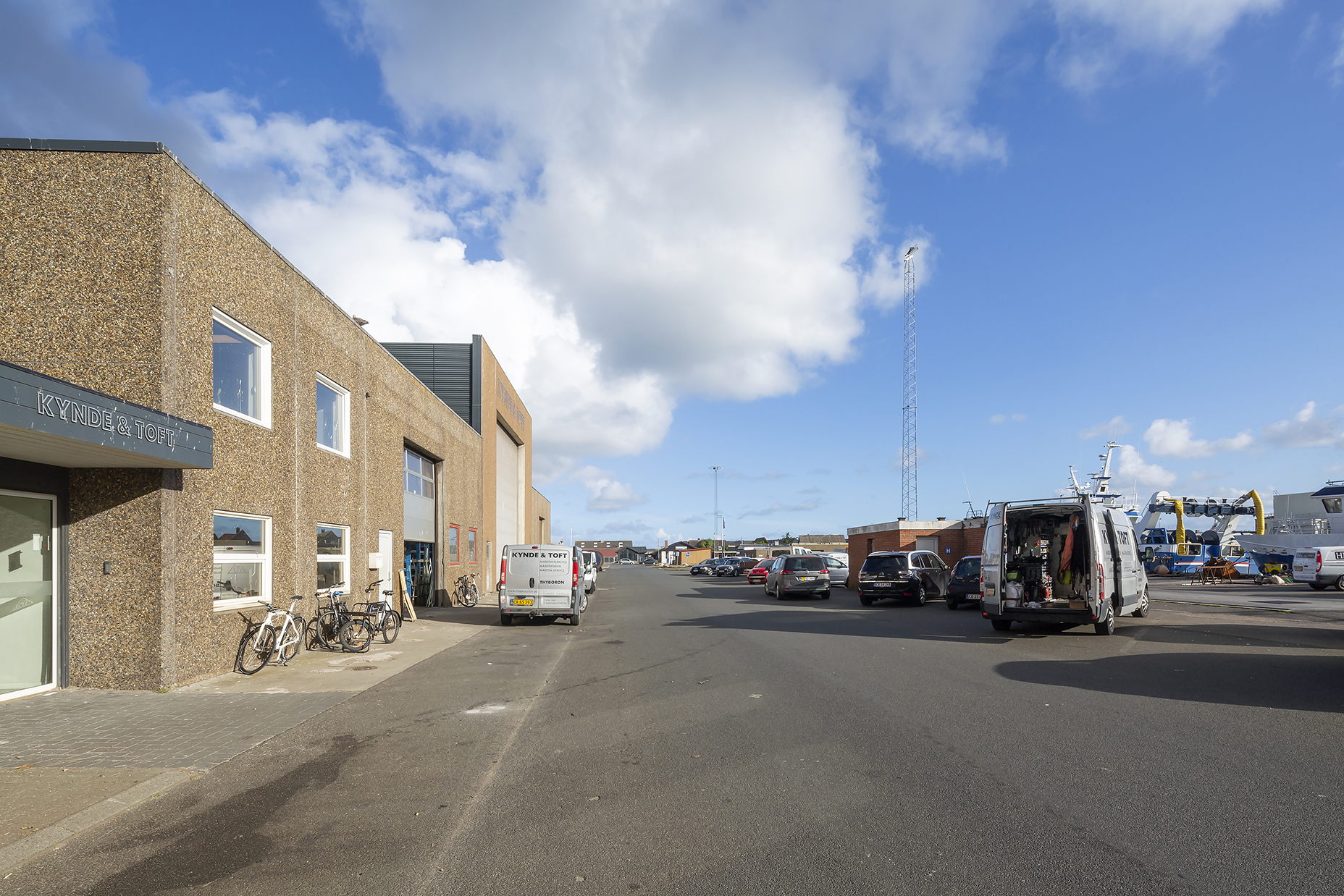

Tværkaj is home to the Kynde & Toft A/S shipyard

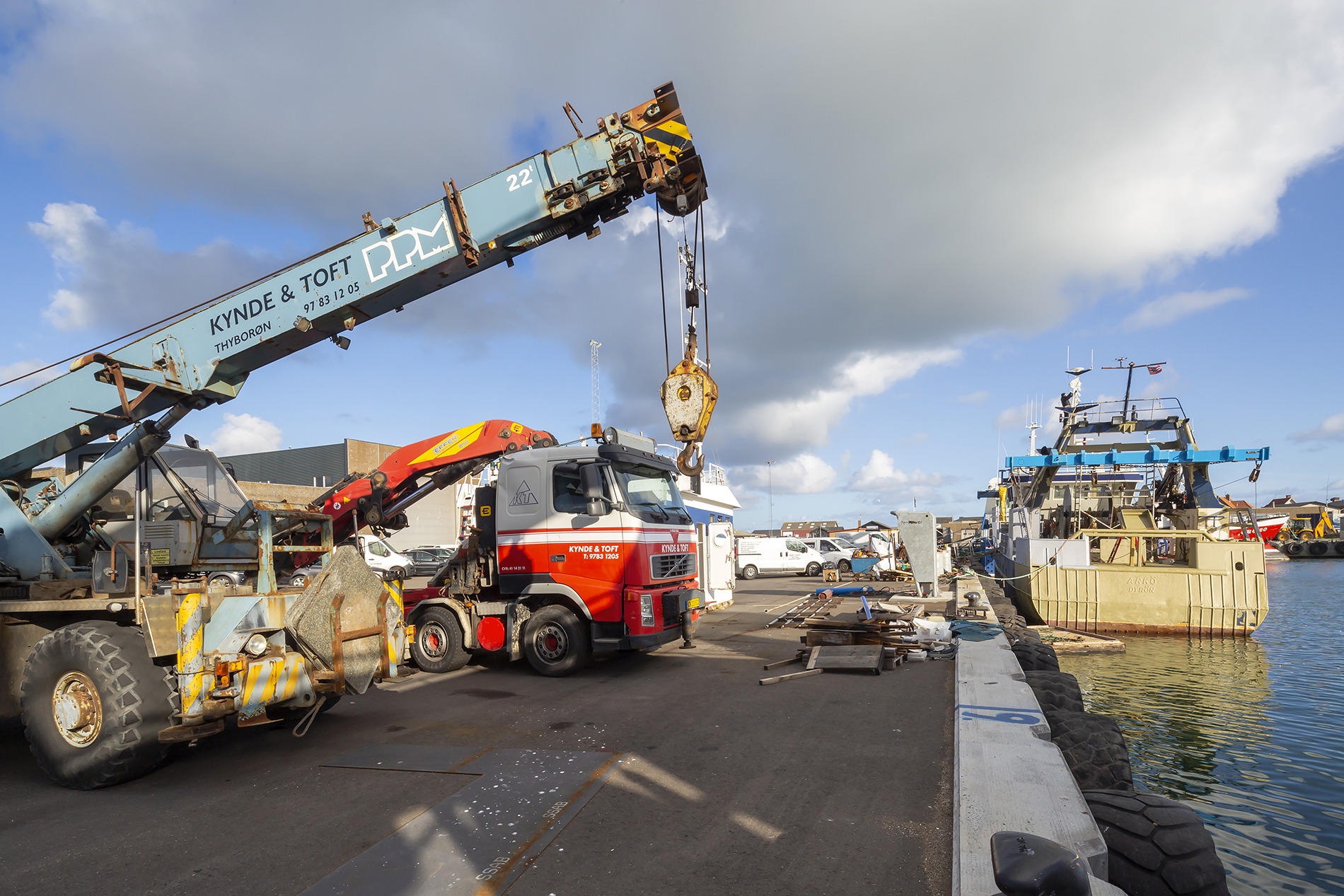

Easy access for cranes
It is of great importance to efficiency during ship repair and maintenance that cranes have easy access. Tværkaj offers this.

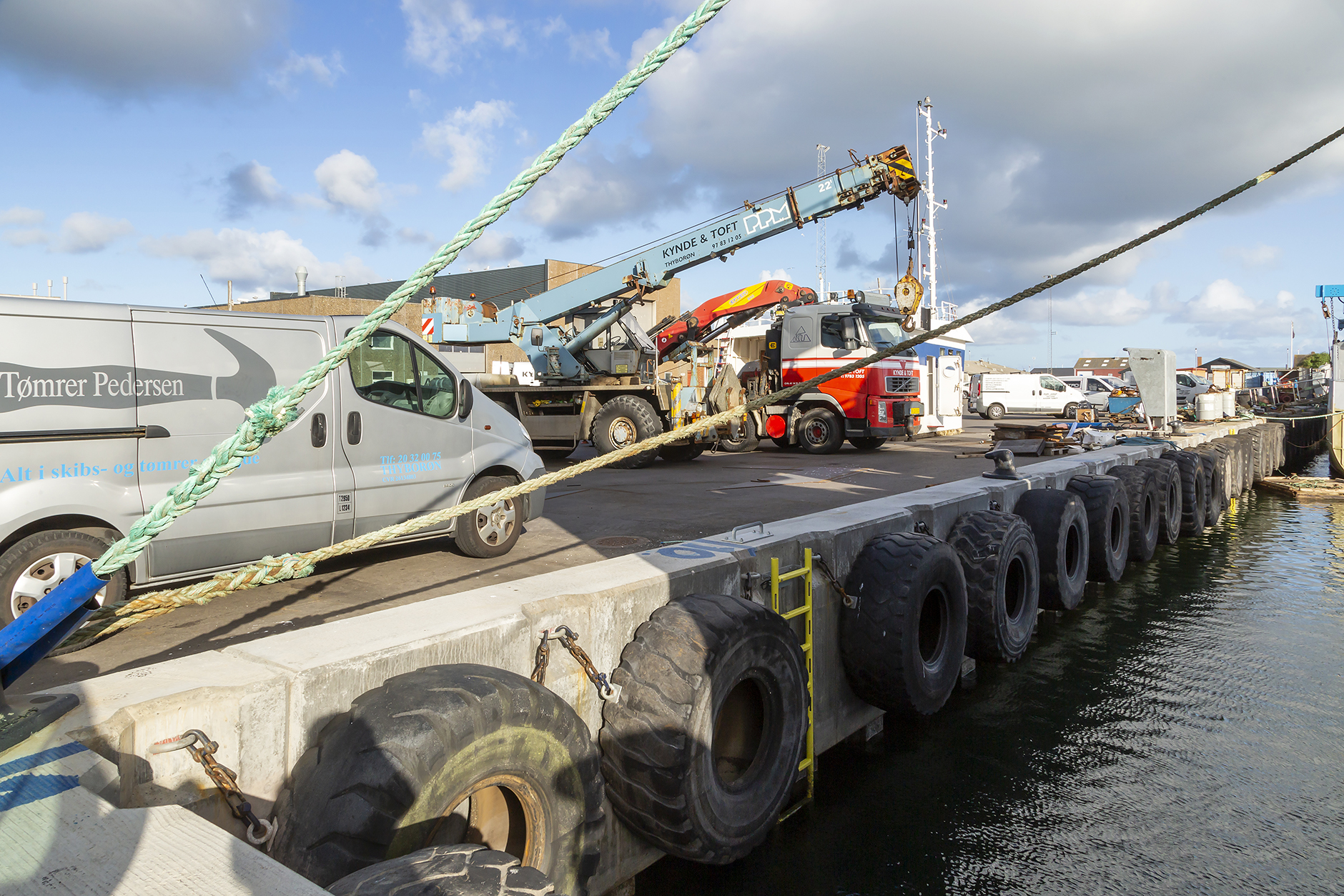

Safety equipment and rescue ladders with LED lights
Yellow high-visibility rescue ladders with LED lighting are easy to locate at night and in weather with poor visibility.

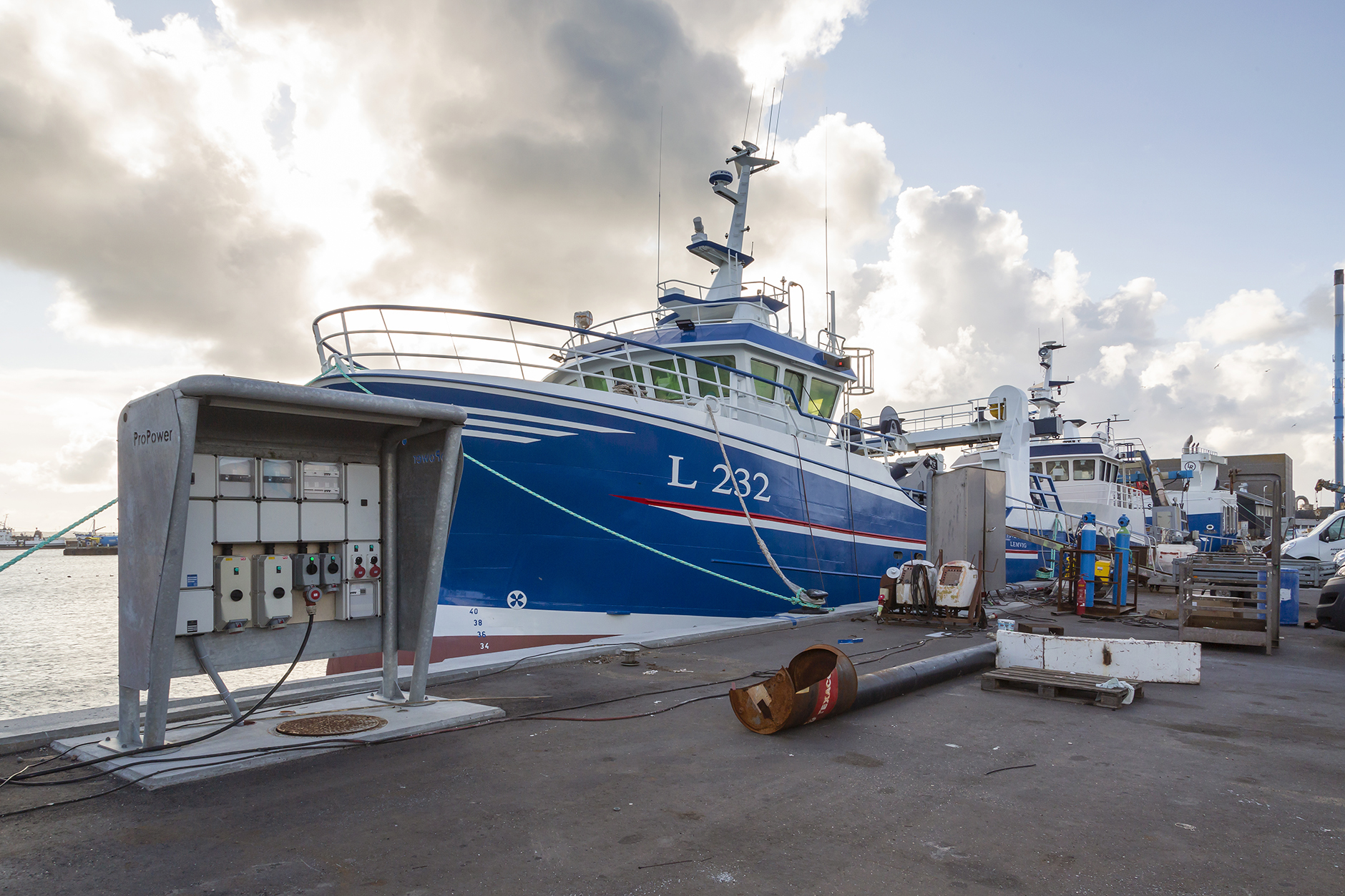

Easy access to supplies
The electricity stands at the Port of Thyboron are easy to use and usually near at hand. This is also true on Tværkaj.
Technical Data - Tværkaj
Berth number
- Berth 1
- 702
Navigation
- Water depth, m
- 6
- Port entrance corridor, m
- 59
- Currents, kn
- 0
Quay facility specifications
Dimensions
- Quay length, m
- 106
- Quay width, m
- 13
- Quay wall in m
- 2,05
Capacity
- Bearing capacity, t per m2
- 0,5
- Point load, t
- 28
- Outrigger pressure at 1X1 m plate, t
- 10
- Outrigger pressure at 1X1 m plate, 1 m from quayside, t
- 28
- Outrigger pressure at 2X2 m plate, t
- 18
- Outrigger pressure at 2X2 m plate, 2 m from quayside, t
- 40
- Outrigger pressure at 4X2 m plate, t
- 40
- Axle load, t
- 30
Type
- Surface type quay, asphalt
- ✓
- Capping beam type, concrete
- ✓
- Quay type, Sheet pile wall
- ✓
Service
- Accessibility for maritime service
- ✔
- Accessible for cranes
- ✔
History
- Construction year
- 2020
Quay equipment
Safety
- Safety ladders, quantity
- 4
- Safety ladders, type SeaSafe with LED lights
- ✓
- Distance between safety ladders, m
- 24
- Safety point, quantity
- 1
Supplies
- Power stations
- ✓
- Power stations on quay
- 2
- Power connection point, 125 amp
- ✓
- Power connection point, 63 amp
- ✓
- Power connection point, 32 amp
- ✓
- Water supplies at quay
- ✓
- Water feed capacity, tons or m3 per hour
- 160
- Bunkering at quay
- ✓
- Bunkering from barge
- ✓
- Bunkering capacity l/min
- 1500
- Bunkering capacity per barge, m3
- 70-80
Maritime equipment
- Fender type
- 23-5
- Fenders diametre, m
- 1,5
- Fenders width, m
- 0,6
- Distance between fenders, m
- 0,8
- Bollard, quantity
- 10
- Bollard type, bean
- X-6-A-F
- Bollard swl, capacity, t
- 30
- Distance between bollard, m
- 12
Environment
- Waste disposal
- ✓
- Slopoil disposal
- ✓
- Wi-Fi, fiber connection
- ✓
Service
- Accessibility for maritime service
- ✓
- Accessible for cranes
- ✓
Hinterland at the quayside
Dimensions
- Onshore area at quayside, m2
- 1400
