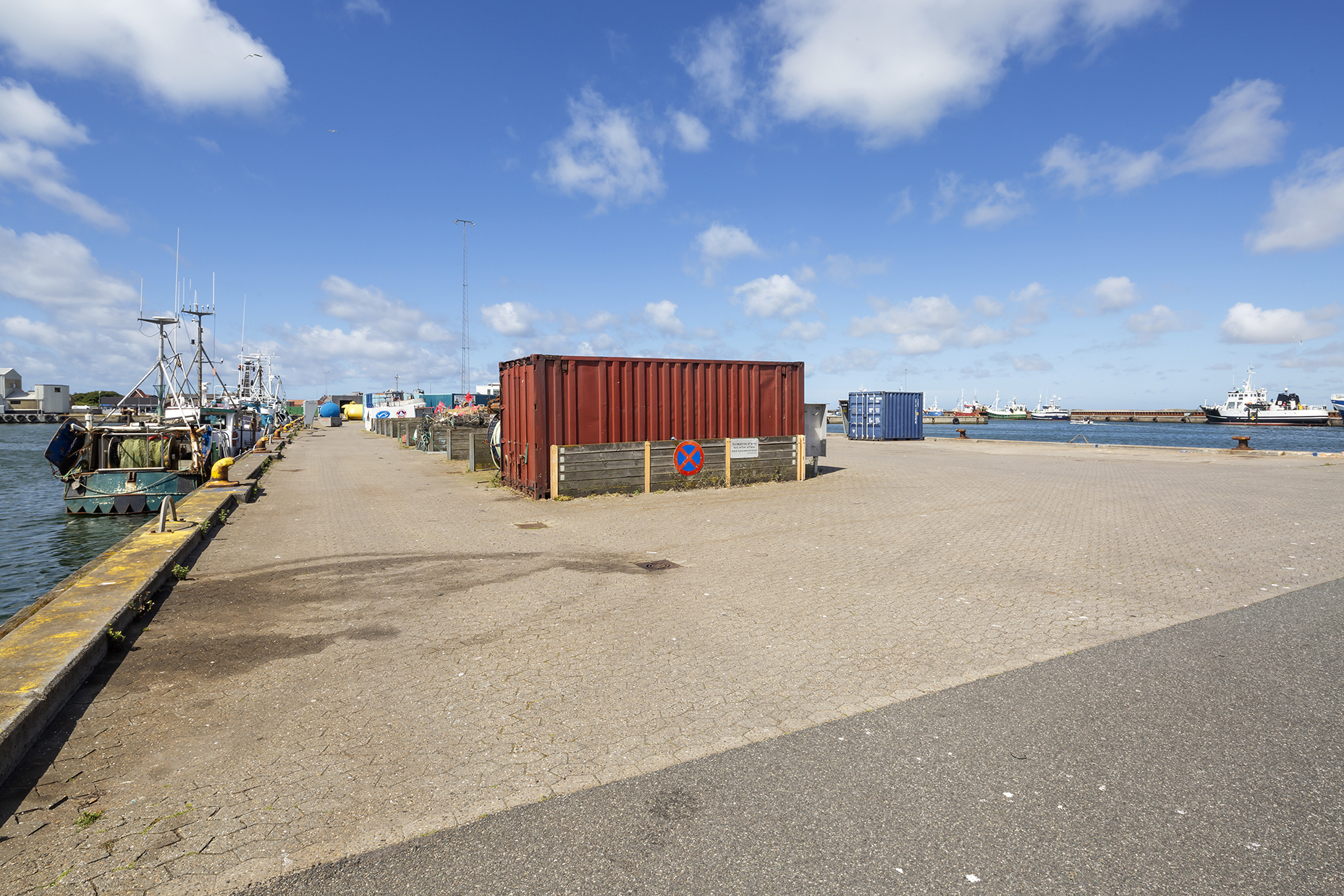

Tværmole
Quay 500, 501, 604
Quay with self-service bunkering system and space for cutters and transit fishing vessels
Space for transit fishing vessels
With six metres of water depth on the eastern side of Tværmole, the quay is ideal for transit fishing vessels. There is easy access for trucks and maritime services.
Self-service bunkering system
At the tip of the quay there is a 50 m3 self-service filling system with card readers from two bunkering suppliers. Commercial fishing vessels and CTVs can drop by to refuel. Payment is made using a payment card.
At Nordic Marine Oil A/S, the capacity is 500 l/min using a large hose, and 200 l/min using a small hose.

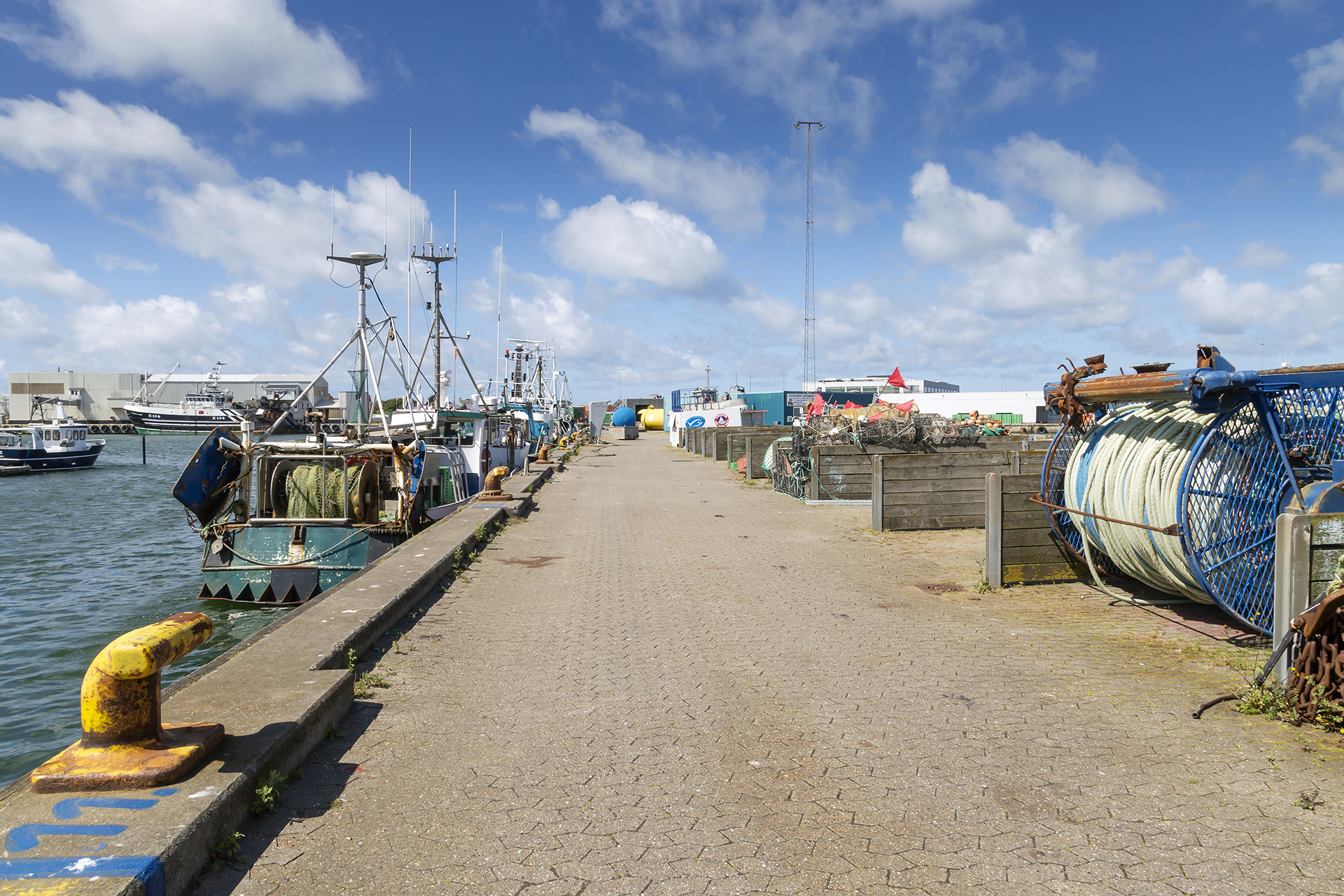

Layover quay for fishing boats and small vessels on the west side
There is four metres of water depth at Tværmole on the west side. There is a layover area for fishing boats and stalls for fishing gear.
Technical Data - Tværmole
Berth number
- Berth 1
- 500
- Berth 2
- 501
- Berth 3
- 604
Navigation
- Water depth, m
- 6
- Port entrance corridor, m
- 59
- Currents, kn
- 0
Quay facility specifications
Dimensions
- Quay length, m
- Quay width, m
- Quay wall in m
Capacity
- Distributet pressure, t per m2
Type
- Surface type quay, asphalt
- ✓
- Capping beam type, concrete
- ✓
- Quay type, Sheet pile wall
- ✓
Service
- Accessibility for maritime service
- ✔
- Accessible for cranes
- ✔
Quay equipment
Safety
- Safety ladders, quantity
- Safety point, quantity
- 1
Supplies
- Power stations
- ✓
- Power stations on quay
- 2
- Power connection point, 63 amp
- ✓
- Power connection point, 32 amp
- ✓
- Water supplies at quay
- ✓
- Water hydrants on quay
- 1
- Bunkering at quay
- ✓
- Bunkering from barge
- ✓
- Bunkering capacity per barge, m3
- 70-80
Maritime equipment
- Fenders diametre, m
- 1,3
- Fenders width, m
- 0,5
- Distance between fenders, m
- 6
- Bollard, quantity
- Bollard swl, capacity, t
- Distance between bollard, m
Environment
- Waste disposal
- ✓
- Slopoil disposal
- ✓
- Wi-Fi, fiber connection
- ✓
Service
- Accessibility for maritime service
- ✓
- Accessible for cranes
- ✓
The environment is everyone’s responsibility, and we make it simpler.
